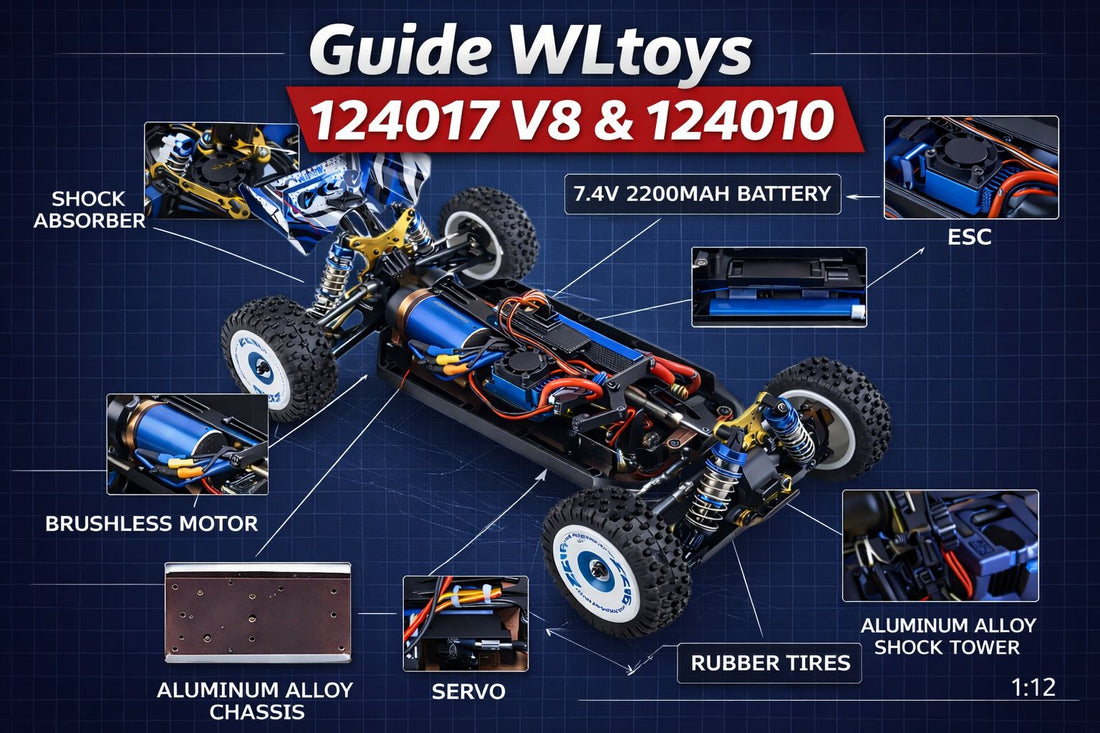

Complete WLtoys 1/12 Guide: Parts, Upgrades, and Maintenance (124017 V8 / 124010)
Optimize your WLtoys 1/12 buggy without breaking the bank: The WLtoys 124017 V8 (brushless) and 124010 V8 (brushed) are fast, fun, and easy-to-maintain off-road RC buggies. But "out of the box," there are a few points to secure if you drive hard (steering knuckles, differentials, ESC cogging, overheating). This practical guide gives you the priority order, real problems documented by the community, and good maintenance habits to gain reliability without blowing your budget.
Do you drive a WLtoys 1/12? Good choice: it's responsive, sturdy, and durable. But breakage happens quickly when doing consecutive jumps, driving on abrasive terrain, or pushing the battery "to the last %".
Goal here: make it reliable without buying just anything. We get to the point: the real problems owners face, what prevents breakdowns, and the upgrades that are really worth it (spoiler: not the "full metal").
The models concerned (124017 / 124010)
At Bigtoysworld.com, our WLtoys 1/12 buggies are available in the "Off-road" collection. Note: we offer these models configured with a 3S (11.1V) battery to fully exploit their power potential.
See the full collection of our 4x4 models →
Known issues + field-tested solutions
Before buying upgrades, know the real weak points reported by the RC community. This saves you from buying "at random" and helps target what really matters.
1. Steering knuckles (the #1 part that breaks)
Symptoms: loose steering, wheel that "dances," vibrations while driving, or clean break after landing a jump.
Why: Original plastic knuckles poorly absorb repeated side impacts.
Budget solution: Upgrade to reinforced knuckles (aluminum or composite). Avoid the "full metal" kit which can create play.
Tip: When a knuckle breaks, also inspect the front CVD/driveshaft: often damaged at the same time.
2. Noisy or locked differentials
Symptoms: abnormal noise (squeaking, clicking), transmission not spinning "free," car pulling to one side.
Why: Lack of lubrication, sand/dust in the diff, or wear of the satellite gears.
Solution: Disassemble, clean thoroughly, re-grease with thick silicone grease. If gears are worn: targeted replacement.
Important: Many diff issues come from poor maintenance, not structural weakness.
3. Front CVD/Driveshaft: vibrations and wear
Symptoms: vibrations while driving, front wheel that "jumps," rapid wear of the hexes.
Why: Misaligned CVD (often after knuckle breakage), worn outdrive, or bent driveshaft.
Solution: Check knuckle + hex + outdrive assembly. A cracked knuckle forces the driveshaft to work off-angle.
4. Cogging / jerky start (124017 brushless)
Symptoms: Jerky starts, motor "knocking" at low speed, power loss.
Why: Original EAT14 ESC sometimes poorly calibrated, or motor not broken in.
Validated solutions:
- Break-in: run the motor in cycles (5 min full throttle / 5 min rest) 3-4 times
- Smaller pinion gear (reduce load at startup)
- ESC calibration (see manual) or ESC upgrade if problem persists
5. Motor overheating (124010 brushed on 3S)
Symptoms: Motor hot to the touch (> 60°C estimated), power loss, burning smell.
Why: The 560 brushed motor is not designed for continuous 3S use.
Solutions: Short sessions (5-7 min max), mandatory breaks, temperature monitoring. If you drive intensively: switch to 2S or brushless motor upgrade.
⚠️ Trap to avoid: "full metal" kits
Warning: All-metal upgrade kits can cause more problems than they solve:
- Excessive play between parts (variable machining tolerance)
- 50% of supplied screws sometimes incompatible
- Alignment and camber issues
- Added weight = more stress on the drivetrain
Best ROI: Targeted upgrades (knuckles + fuse parts) rather than "full aluminum".
Priority improvements (optimized budget)
Don't change everything. Prioritize by reliability impact. Here is the recommended order:
Level 1: Basic reliability (< €30)
- Reinforced steering knuckles (front): #1 impact on breakage
- Screw check: tightening + micro-drop of threadlocker (metal screws only)
- Transmission cleaning: degreaser + differential re-lubrication
Level 2: Control upgrades (€30-60)
- Oil-filled shocks (if not already installed): stability = less breakage
- Terrain-appropriate tires: huge impact on traction and wear
- Robust front CVDs: if you break them often (repeated jumps)
Level 3: Performance (> €60, optional)
- Programmable ESC: if persistent cogging on 124017
- Motor upgrade: if excessive heating or power boost is needed
- Reinforced arms: only if you regularly break the originals
Survival stock: parts to have on hand
To avoid a run ending after 5 minutes, build a small stock of "fuse" parts:
- Steering knuckles (minimum x2 front): the #1 part that breaks
- Front arms (x2): second victim of impacts
- Body clips (x8-10): they disappear quickly in the grass
- Front CVD/Drive shafts (x1 complete): if you jump often
- Wheel hexes (x4): rapid wear if poorly tightened
- Spare motor pinion: allows testing different ratios
- M3 screw assortment + various clips
Maintenance + anti-overheating tips
Routine after each outing (5 min)
- Cleaning: brush + air blower to remove dust and gravel
- Visual inspection: knuckle cracks, wheel play, bodywork
- Tightening check: triangle screws, ESC mount, receiver
- Gear condition: check pinion/crown (no broken teeth)
Monthly maintenance (30 min)
- Transmission disassembly: cleaning + re-greasing differentials
- Mesh check (between teeth): a sheet of paper should pass with slight resistance
- Shock absorber check: leaks, bleeding, smoothness
- Cleaning electrical contacts (ESC, motor, connectors)
Motor heat management
124017 brushless:
- Acceptable temperature: motor warm to the touch (< 50°C estimated)
- If too hot: 5 min breaks every 10 min of running
- Check mesh (too tight = excessive heat)
- If problem persists: smaller pinion (fewer teeth)
124010 brushed 3S:
- Strict monitoring: never exceed "hot but tolerable to touch"
- Mandatory short sessions (5-7 min max)
- If burnt smell: stop immediately
- Consider switching to 2S for intensive use
Li-Po battery maintenance
A well-maintained battery = longer life + safety. Key points:
- Store at 3.8V per cell (charger "storage" mode)
- Never discharge below 3.3V per cell (cut off at minimum 3.5V)
- Charge at 1C maximum (2200mAh = max 2.2A charge)
- Visual inspection before each outing (swelling, damage)
For more details: Complete Li-Po Battery Guide →
Where to find compatible parts & consumables
For WLtoys, the key is to search for the exact reference (e.g., "124017 knuckle" or "124010 CVD"). Method to avoid incompatible purchases:
- Start with universal: batteries, chargers, standard tires, screws
- Specific parts next: knuckles, arms, CVD (check compatibility 1240xx)
- Metal upgrades: favor well-known brands with good user feedback
At Bigtoysworld.com, useful categories:
- RC Electronics & Batteries (batteries, chargers, ESC)
- Spare Parts & Upgrades (compatible parts)
- Off-road Collection (all our 4x4s)
WLtoys 1/12 FAQ
Is the 124017 more fragile than the 124010?
Can I convert the 124010 to brushless?
How to reduce play in the steering?
Are metal upgrades worth it?
My 124017 has cogging, what to do?
